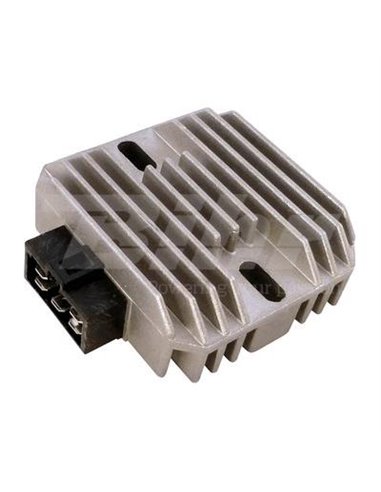

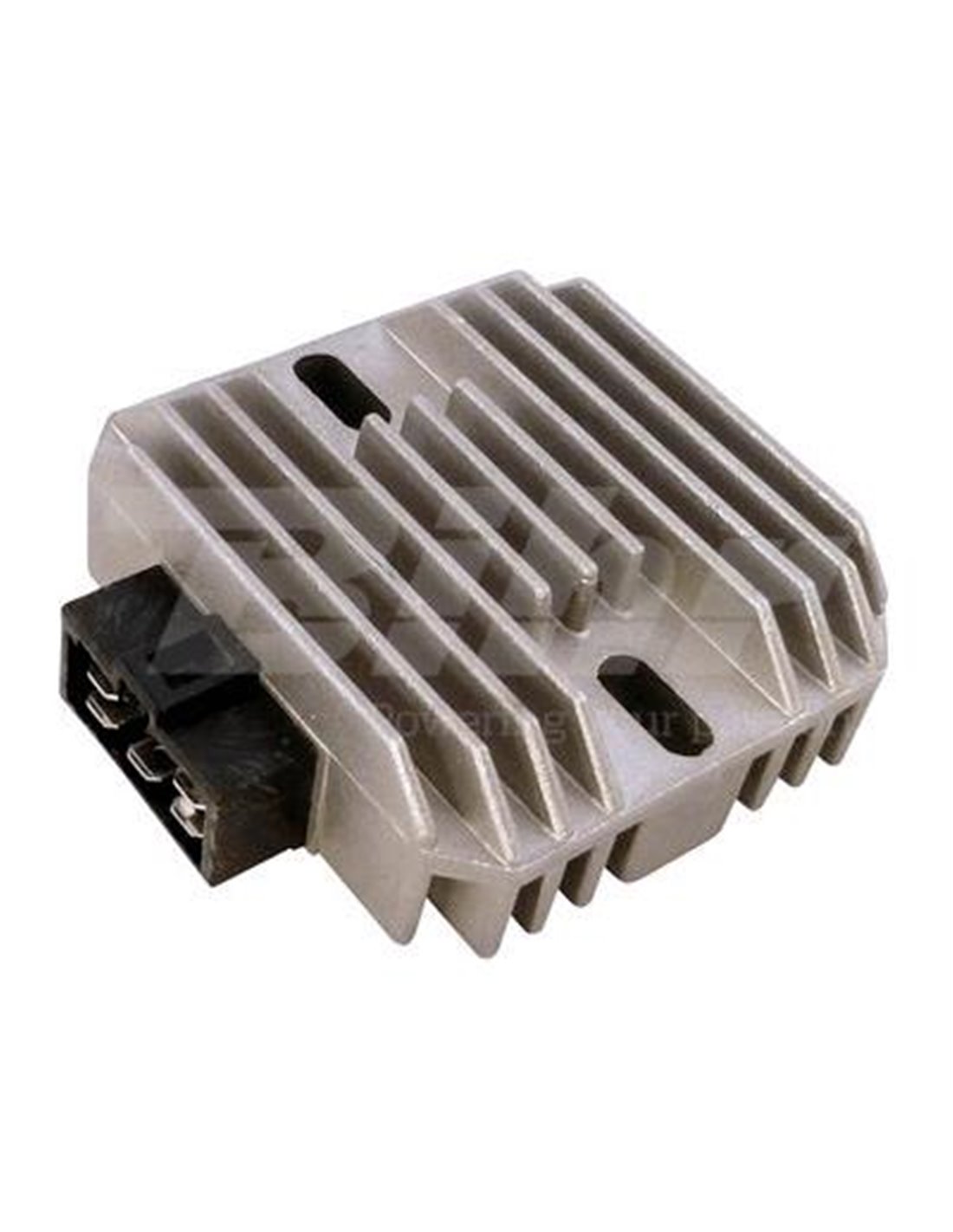

Regulator DZE Piaggio 125/180/200

Technical information
Tension (voltage) 12 [V]
Current (current) 25 [A]
Input type (input type) THREE-PHASE
SCR technology
Output type CC
Height (height) 28 [mm]
Width (width) 70 [mm]
Length (length) 80 [mm]
With sensor (with sensor) NO

Dze products that apply to
Brand Model Version Displacement Year Cod. OEM
Aprilia - AP8127418
Aprilia Atlantic 200 82501R - 58090R
Aprilia Atlantic 250 82501R - 58090R
Aprilia Mojito 150 82501R - 58090R
Aprilia Mojito 125 82501R - 58090R
Aprilia SR ie 50 82501R - 58090R
Aprilia Scarabeo 200 from 2000 to 2007 82501R - 58090R
Aprilia Scarabeo 250 from 2000 to 2007 82501R - 58090R
Aprilia Scarabeo 125 from 2000 to 2007 82501R - 58090R
Aprilia Sport City 125 82501R - 58090R
Aprilia Sport City 200 82501R - 58090R
Benelli ADIVA 150
Benelli ADIVA 125 from 2001 to 2002 R51540081A0
Benelli ADIVA 125
Benelli ADIVA 150 from 2001 to 2002 R51540081A0
Benelli Velvet 400 from 2003 to 2004 R51540081A0
Derbi BOULEVARD 150
Derbi BOULEVARD 125
Derbi BOULEVARD 200
Derbi GP1 250
Derbi RAMBLA 125
Gilera DNA 4T 180 82501R - 58090R
Gilera DNA 4T 125 82501R - 58090R
Gilera Nexus 125 82501R - 58090R
Gilera Runner Purejet 50 82501R - 58090R
Gilera VX Runner 125 82501R - 58090R
Gilera VXR Runner 180 82501R - 58090R
Gilera VXR Runner 200 82501R - 58090R
Italjet Jet Set 125
Italjet Jet Set 150
Italjet Torpedo 125
Italjet Torpedo 150
Malaguti F12 Max 200 02601600
Malaguti F12 Max 250 02601600
Malaguti Madison 250 02601300
Malaguti Madison 180 02602300
Malaguti Madison 200 02602300
Malaguti Madison 3 125 from 2006 to 2009 02602900
Malaguti Phantom Max 200 02602300
Malaguti Phantom Max 250 02602300
Piaggio - 486062
Piaggio Beverly 250 82501R - 58090R
Piaggio Beverly 125 82501R - 58090R
Piaggio Beverly 200 82501R - 58090R
Piaggio Carnaby 125 82501R - 58090R
Piaggio Carnaby 200 82501R - 58090R
Piaggio Fly 125 82501R - 58090R
Piaggio Fly 150 82501R - 58090R
Piaggio GTX Super Hexagon 125 82501R - 58090R
Piaggio GTX Super Hexagon 180 82501R - 58090R
Piaggio Liberty 200 82501R - 58090R
Piaggio Liberty 125 82501R - 58090R
Piaggio Liberty 150 82501R - 58090R
Piaggio NRG Purejet 50 82501R - 58090R
Piaggio Skipper ST 4T 125 82501R - 58090R
Piaggio Skipper ST 4T 150 82501R - 58090R
Piaggio Vespa X8 200 82501R - 58090R
Piaggio Vespa LX 125 82501R - 58090R
Piaggio Vespa ET4 150 82501R - 58090R
Piaggio Vespa ET4 125 82501R - 58090R
Piaggio Vespa GT 200 82501R - 58090R
Piaggio Vespa X8 125 82501R - 58090R
Piaggio Vespa GT 125 82501R - 58090R
Piaggio Vespa LX 150 82501R - 58090R
Piaggio X9 200 82501R - 58090R
Piaggio X9 180 82501R - 58090R
Piaggio X9 125 82501R - 58090R
Piaggio X9 250 82501R - 58090R
Piaggio Zip 4T 125 82501R - 58090R
